For decades, medical microwave ablation systems have utilized magnetrons as their primary high-frequency energy source. While cost-effective, magnetron technology presents significant engineering and clinical limitations that are driving the industry toward solid-state alternatives.

The Constraints of Magnetron Technology: Magnetrons are vacuum tube devices that require high-voltage power supplies (often exceeding several kilovolts), complicating system design and safety compliance. More critically, as the magnetron's internal temperature fluctuates during prolonged ablation procedures, its operating frequency drifts. This spectral instability leads to unpredictable energy deposition and reduced repeatability in clinical outcomes.

The Advantages of Solid-State Power Amplifiers (SSPA): The integration of Solid-State Power Amplifiers (SSPA) represents a fundamental architectural upgrade. Driven by advanced RF semiconductor chips, SSPAs operate on safe, low-voltage DC power (typically 28V to 50V). They utilize Phase-Locked Loop (PLL) or Direct Digital Synthesizer (DDS) technologies to generate an exceptionally pure and stable continuous wave (CW).

Because the frequency remains locked regardless of operating duration or thermal load, SSPAs eliminate frequency drift entirely. Combined with a Mean Time Between Failures (MTBF) that significantly surpasses that of vacuum tubes, solid-state amplification is establishing the new standard for reliability, precision, and regulatory compliance in medical energy platforms.

The evolution of microwave ablation (MWA) is pushing the limits of RF engineering. Traditionally, MWA systems operated on fixed, narrow frequency bands (e.g., exactly 915 MHz or 2.45 GHz). However, clinical realities present a complex challenge: as biological tissue is heated, its dielectric properties change dramatically.

The Challenge of Fixed Frequencies: When the tissue's impedance changes during ablation, a fixed-frequency system experiences a severe "mismatch." This causes a high Standing Wave Ratio (SWR), meaning the RF energy is reflected back to the amplifier rather than being absorbed by the tumor. This not only risks damaging the equipment but dramatically halts the ablation process.

The Wideband Solution: Wideband Solid-State Power Amplifiers (SSPAs) are revolutionizing this process. Unlike their narrow-band predecessors, wideband SSPAs can maintain high-efficiency power output across a much broader frequency spectrum without distortion.

Dynamic Frequency Sweeping: By integrating wideband amplifiers, modern ablation systems can perform real-time frequency sweeping. If the tissue's impedance shifts, the system instantly "sweeps" across a bandwidth to find the new optimal resonance point. It automatically adjusts the operating frequency to guarantee maximum energy transfer, completely bypassing the limitations of impedance mismatch.

At Nuohai Technology, our custom wideband RF solutions empower medical device manufacturers to build smarter, adaptive MWA systems. This wideband capability translates directly to safer, faster, and more predictable ablation zones for patients.

Treating large or irregularly shaped tumors requires unprecedented control over the thermal ablation zone. The industry's answer is multi-probe phase-controlled microwave ablation, which uses multiple antennas and adjusts their signal phases to dynamically "shape" the thermal field. However, this advanced clinical concept has long been bottlenecked by hardware limitations.

The Fatal Flaw of Traditional Amplifiers: Phase control requires absolute, unwavering synchronization between the RF channels. During surgery, as tissue heats and carbonizes, its impedance fluctuates wildly. When a traditional narrow-band amplifier encounters this drastically changing load (high SWR), it suffers from severe phase shift. The carefully calculated phase difference collapses, and the thermal shape becomes unpredictable and dangerous.

Why Wideband is the "Only Solution": This is where Wideband Solid-State Power Amplifiers (SSPAs) step in from behind the scenes to become the true protagonists. Because they are designed to operate across a broad spectrum with high linearity, wideband amplifiers possess intrinsic phase stability and are highly resilient to load pulling.

Unshakable Synchronization: Even when the tissue's impedance changes chaotically at the probe tip, a wideband amplifier maintains a rock-solid phase relationship. It does not distort or drift under severe mismatch, ensuring that the software's phase-array commands are executed with mathematical precision throughout the entire procedure.

At Nuohai, we recognize that true medical innovation relies on robust fundamental physics. Our wideband GaN-based amplifier modules are engineered specifically to eliminate phase drift under severe mismatches, making next-generation conformal ablation not just a theoretical concept, but a reliable clinical reality.

In microwave ablation (MWA), achieving a sufficient ablation volume remains a primary clinical objective. However, the application of high-power RF energy often leads to rapid desiccation and carbonization of the peri-antenna tissue. This carbonized layer acts as a dielectric insulator, creating a severe impedance mismatch that reflects subsequent microwave energy and halts further thermal propagation.

Limitations of Continuous Wave (CW) Output: Traditional ablation generators rely on Continuous Wave (CW) delivery. The sustained energy deposition rapidly exceeds the tissue's thermal relaxation time, boiling intra- and extracellular fluid and accelerating the formation of the high-impedance carbonized zone.

The Wideband SSPA Solution: Pulse Width Modulation (PWM): To mitigate this effect, energy must be delivered using precisely controlled Pulse Width Modulation (PWM). By modulating the RF output into microsecond-level bursts, the system introduces brief off-cycles. These intervals allow for thermal conduction to dissipate heat into deeper tissue layers before the immediate contact area reaches carbonization temperatures.

Traditional amplifiers lack the rapid transient response required for high-frequency PWM switching without inducing component degradation. Wideband Solid-State Power Amplifiers (SSPAs), however, feature microsecond switching capabilities. This enables precise manipulation of the duty cycle, optimizing the thermal profile, preventing premature impedance spikes, and ultimately generating significantly larger and more predictable ablation zones.

Biological tissues exhibit heterogeneous dielectric properties—specifically relative permittivity and effective conductivity—which dictate their absorption of microwave energy. Consequently, optimizing energy transfer requires selecting the appropriate operating frequency. For example, hepatic tissue generally demonstrates superior heating profiles at 2.45 GHz, whereas pulmonary or thyroid tissues often require the deeper penetration characteristics of 915 MHz.

Hardware Limitations in Traditional Systems: Historically, this biological requirement forced healthcare facilities to invest in multiple, frequency-specific ablation generators. Traditional narrow-band amplifiers are physically tuned to maximize gain at a single frequency, making dual-band output unfeasible within a single RF chain.

The Broadband Architecture Advantage: Wideband SSPAs resolve this limitation through their inherent broadband architecture. Engineered to maintain flat gain and high efficiency across a wide spectrum, a single wideband amplifier module can seamlessly output either 915 MHz or 2.45 GHz without physical hardware adjustments.

By leveraging Nuohai's wideband technology, medical device manufacturers can design "frequency-agile" ablation systems. The control software can dynamically shift the operating frequency to match the specific dielectric properties of the target organ, enabling multi-target capabilities within a single, cost-effective capital equipment platform.

The next frontier in interventional oncology is "Autonomous Ablation," where artificial intelligence (AI) models predict tissue necrosis progression in real-time, automatically modulating power and terminating the procedure to prevent collateral damage. The efficacy of these algorithms is entirely dependent on the quality of the real-time hardware telemetry.

The Challenge of Signal Distortion: AI models rely heavily on detecting minute shifts in tissue impedance via reflected power measurements (VSWR). Traditional RF amplifiers often exhibit non-linear behavior under varying loads, introducing harmonic distortion and intermodulation products. This degraded signal-to-noise ratio severely compromises the accuracy of the impedance calculation, leading to algorithmic prediction errors.

The Necessity of High Linearity: Wideband SSPAs address this through exceptional Linearity. They function as a highly transparent signal pathway, ensuring that the forward and reflected power measurements remain undistorted regardless of dynamic load changes at the ablation antenna.

By delivering high-fidelity, high-resolution data acquisition, Nuohai's linear wideband amplifiers provide the reliable telemetry stream required by advanced control systems. This uncompromised feedback loop is the fundamental hardware prerequisite for safely executing AI-driven autonomous surgical algorithms.

Operating room real estate is highly constrained. Despite this, legacy RF and microwave ablation generators are characterized by large, cart-based form factors. This bulk is not dictated by the logic boards, but by the extensive thermal management systems required by inefficient RF amplification stages.

Thermal Dissipation Constraints: Older silicon (Si) or LDMOS-based amplifiers operate at lower power conversion efficiencies at high frequencies. A significant portion of the DC input power is dissipated as waste heat. Managing this thermal load requires massive heat sinks, high-CFM fans, or complex closed-loop liquid cooling systems, drastically increasing device size and weight.

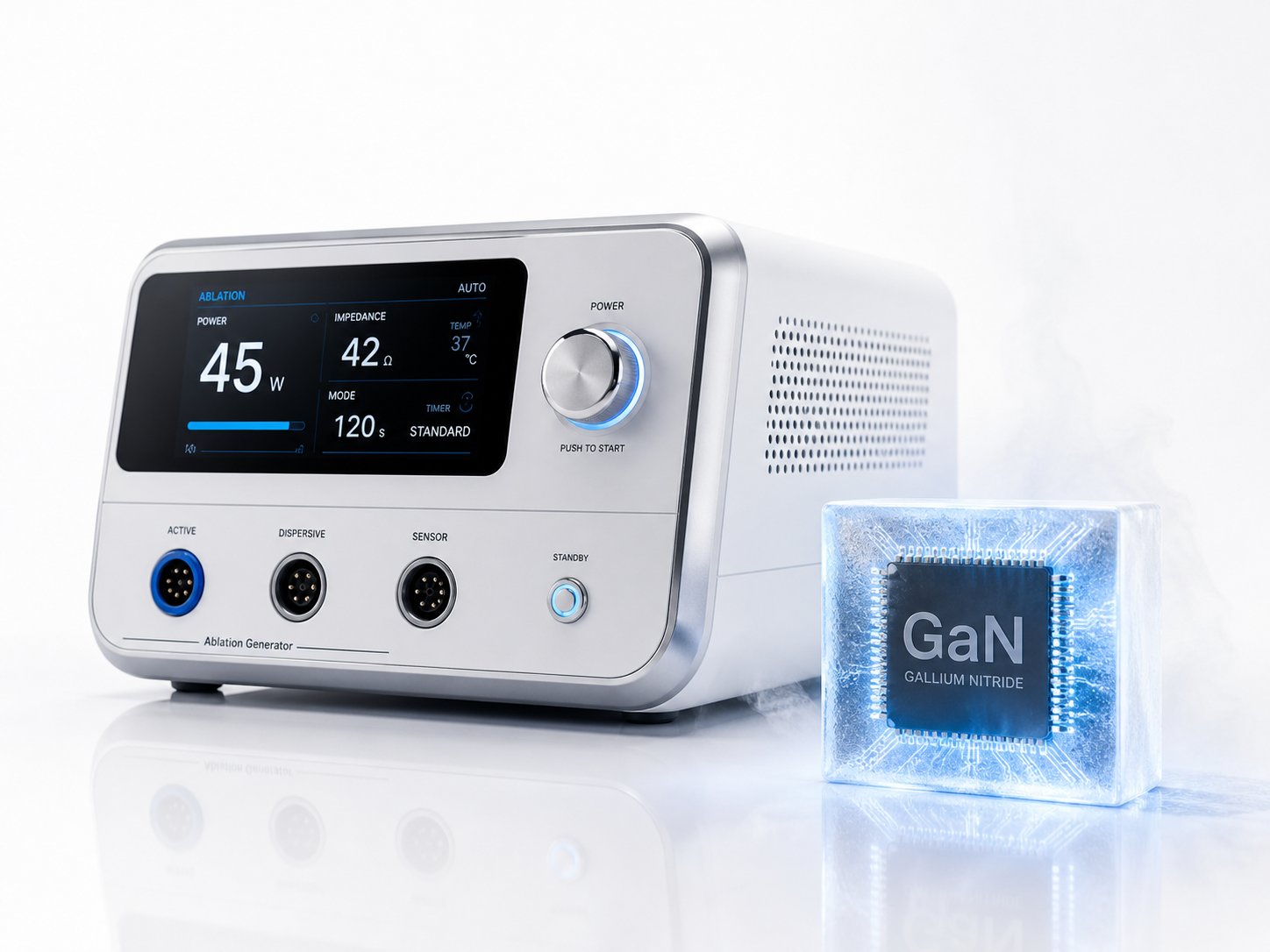

The Gallium Nitride (GaN) Solution: The integration of Gallium Nitride (GaN) wideband bandgap semiconductors fundamentally alters the thermal equation. GaN-based SSPAs achieve exceptionally high power density and Power Added Efficiency (PAE). They deliver equivalent or superior RF output power while generating a fraction of the thermal dissipation.

This dramatic reduction in waste heat allows Nuohai's engineering team to simplify the cooling architecture. By eliminating liquid chillers and downsizing heat sinks, medical device manufacturers can transition from bulky cart-based generators to compact, lightweight, desktop-class form factors, significantly improving clinical workflow and portability.

Cardiac Electrophysiology (EP) ablation demands a heightened level of energy control compared to oncology applications. The procedure involves mapping and neutralizing arrhythmogenic pathways on the endocardial surface. Due to the thinness of the myocardial wall, exceeding the precise energy threshold can result in critical complications, including transmural cardiac perforation.

The Risk of Energy Tailing: A critical safety parameter is the system's transient response—specifically, the time required to attenuate RF power from maximum output to zero. Legacy amplifier architectures often exhibit "energy tailing," where internal capacitance causes power to decay gradually rather than terminating instantly upon command, exposing the myocardium to unintended thermal doses.

Zero-Latency Power Attenuation: Nuohai's wideband RF amplifiers are engineered with a Zero-Latency Digital Control Architecture. Upon detection of rapid impedance spikes (indicating potential steam pop or perforation risk) or manual cessation by the electrophysiologist, the amplifier executes microsecond-level power attenuation.

Combined with highly linear gain stages that permit ultra-fine power stepping (0.1 Watts resolution), this rapid transient response provides an essential safety margin, ensuring strict adherence to the intended thermal dosimetry during high-risk cardiac interventions.

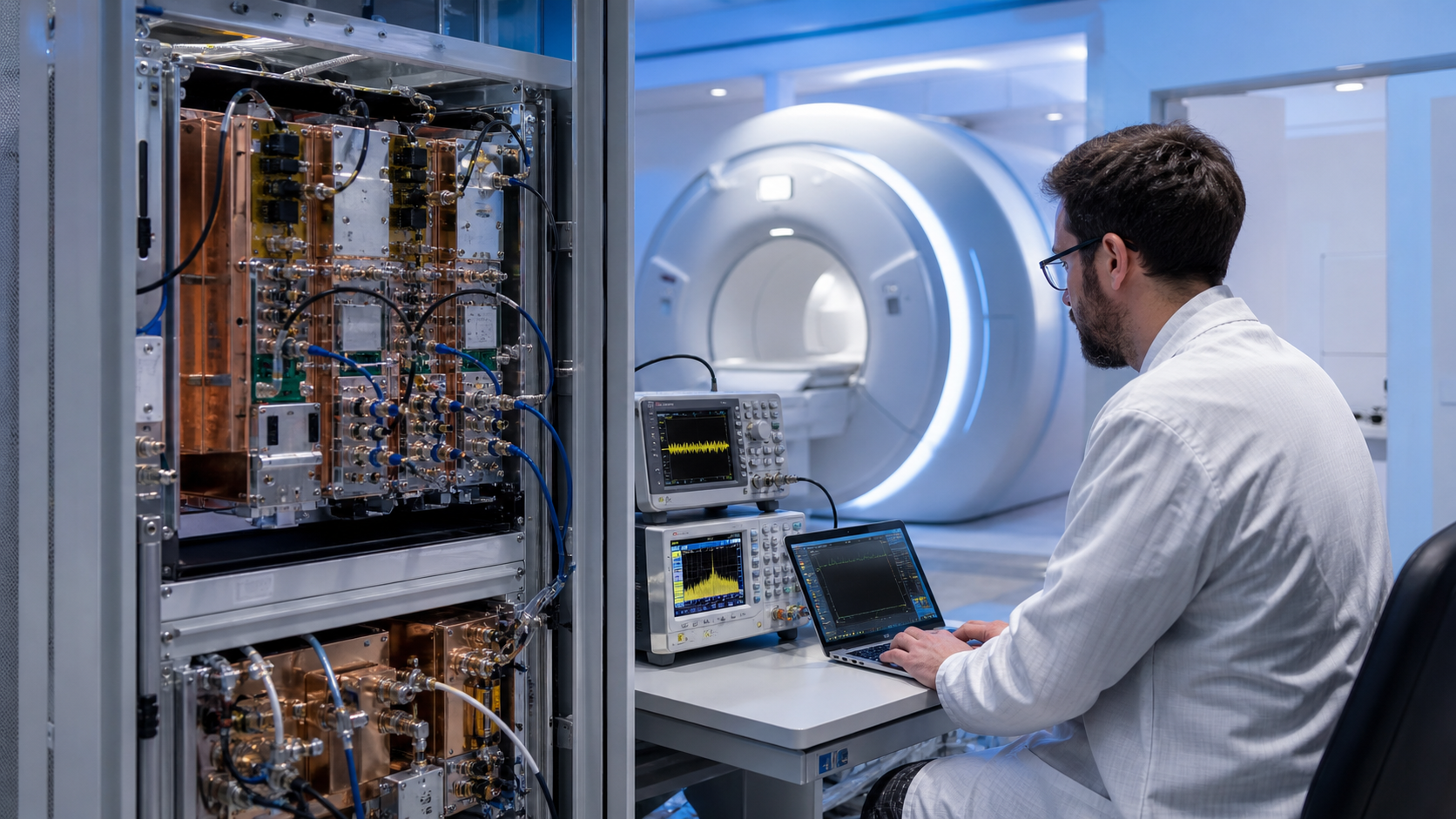

Magnetic Resonance Imaging (MRI) relies on the generation of powerful Radio Frequency (RF) pulses (typically at 64 MHz for 1.5T or 128 MHz for 3.0T systems) to excite hydrogen nuclei within a strong magnetic field. The diagnostic quality of the resulting image is highly dependent on the precision and spectral purity of the RF excitation envelope.

The Impact of Phase Noise and Distortion: The RF Power Amplifier is responsible for scaling the low-level synthesized signal to tens of kilowatts. If the amplification stage introduces phase noise, amplitude droop, or harmonic distortion, the excitation pulse deviates from its ideal profile. This signal degradation translates directly into image artifacts, reduced contrast, and overall compromised spatial resolution in the clinical scan.

Maximizing Signal-to-Noise Ratio (SNR): Nuohai specializes in the development of RF amplifier architectures tailored for the rigorous demands of superconducting MRI systems. Our designs prioritize Extreme Linearity and Ultra-Low Noise Figures, ensuring the high-power pulse remains an exact replica of the exciter signal.

By delivering high-fidelity RF pulses without added spectral impurities, our MRI amplifiers significantly enhance the system's overall Signal-to-Noise Ratio (SNR). This foundational signal integrity is critical for enabling radiologists to achieve the diagnostic clarity required for advanced medical imaging.

Non-invasive aesthetic procedures utilizing Radio Frequency (e.g., monopolar 6.78 MHz treatments) operate on a precise thermal gradient. The objective is to deposit sufficient energy into the deep dermis to reach approximately 60°C—initiating collagen denaturation and neocollagenesis—while maintaining epidermal temperatures within safe parameters to prevent thermal injury.

The Risk of Turn-On Transients: A primary failure mode in inadequately designed RF aesthetic devices is the occurrence of "turn-on transients." When the RF pulse initiates, suboptimal amplifier tuning or impedance mismatch can cause a momentary, high-amplitude power spike before the closed-loop control stabilizes the output. In dermatological applications, this microsecond spike can exceed the epidermal safety threshold, resulting in blistering or scarring.

Optimized Pulse-Shaping Networks: Nuohai applies oncology-grade engineering standards to Medical Aesthetic RF Amplifiers. Our solid-state modules incorporate advanced pulse-shaping networks and fast-acting Automatic Level Control (ALC) loops. These ensure a perfectly monotonic rise time and a flat, spike-free energy delivery curve.

Operating in conjunction with real-time impedance monitoring to verify continuous electrode-tissue coupling, our highly linear amplifiers provide the precise, predictable thermal energy distribution required to maximize aesthetic efficacy while strictly mitigating the risk of epidermal burns.
